Drawer Slide Installation
|
Unpack & Identify Drawer Slide Parts (2) Drawer Slides (L Shaped / counterbored holes) (2) Clamp Bars (4) Screws & Washers (1) Gauge Rod |
 |
|

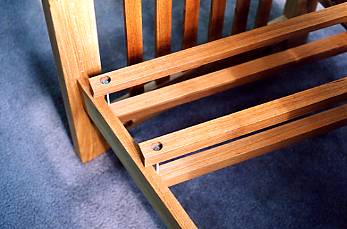

Attach Slide to Clamp Bar Note: Clamp Bar supplied may not be notched. Turn Screw with Washer in a few turns. Install all 4 Screws.
|
 |
|
Position Slide Assemblies L Shaped Drawer Slide goes on top of Rails for Over Rail Scanner Shelf, or under Rails for Drawers and Under Rail Scanner Shelf. |
 |
|

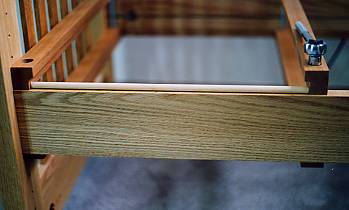

Gauge Slides Use Gauge Rod supplied to set distance between Drawer slides Slide position shown for Over Rail Scanner Shelf |
 |

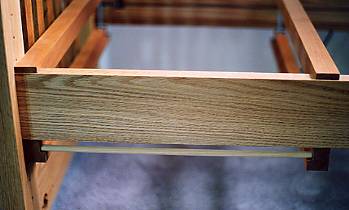

| Slide position shown for Under Rail Scanner Shelf, File Drawer, and Large Drawer |  |
|
Tighten Screws Distance between Slides can be adjusted for optimum drawer function.
|
 |
