LoPro Tray Assembly
 |
|

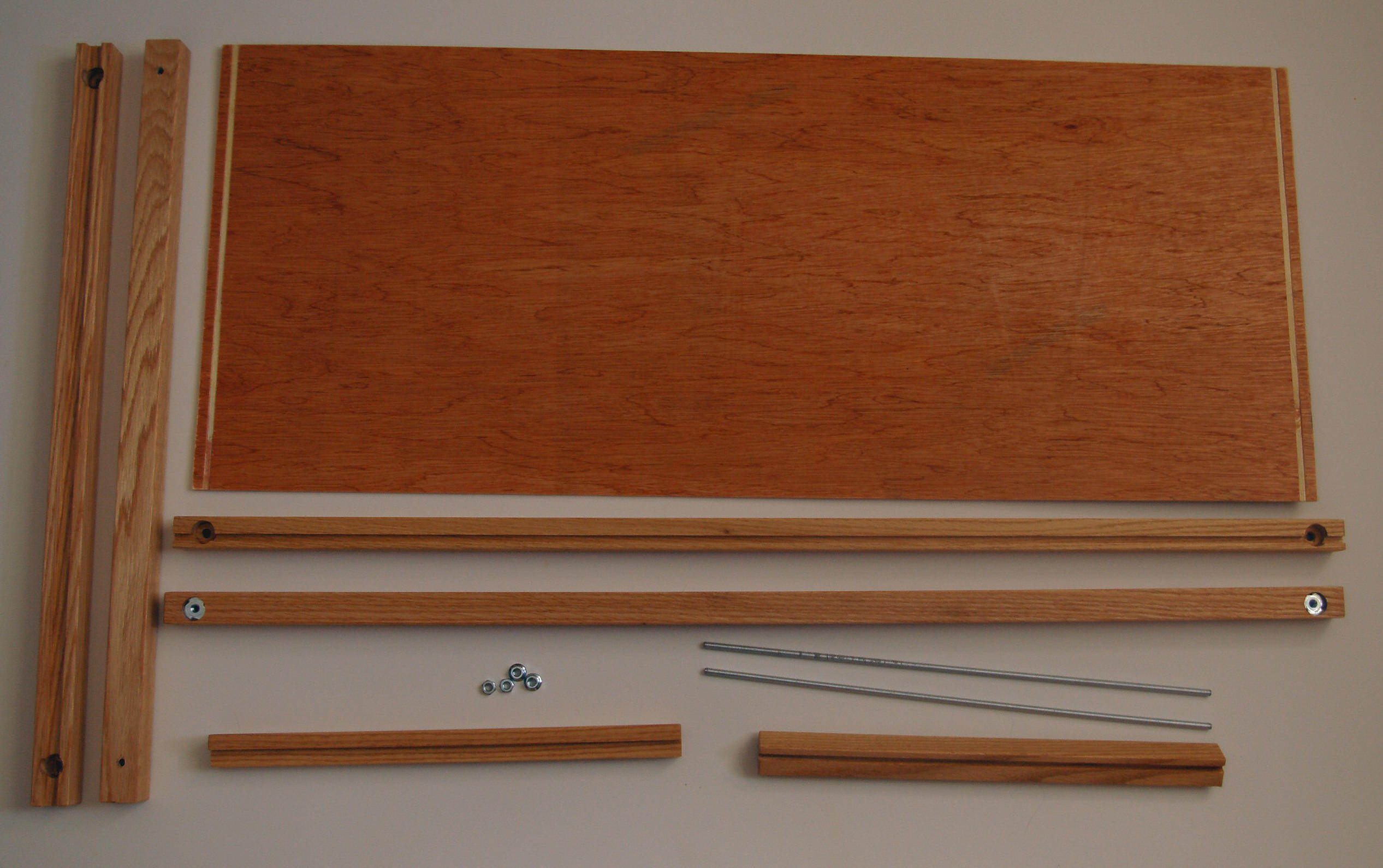

| Locate Storage Tray parts: (1) Tray Bottom: 1/4"
X 15 9/16" X L plywood (2) Tray Slides: 1 1/16" X 1 1/16" X 15 1/8" (shaped
like the letter "L") (2) 1/4" flanged nuts (2) Desk Sides: 1 1/8" X 1 1/4" X 25 1/2" (attached to
the legs of the desk, shaped like the Letter "U") |
|

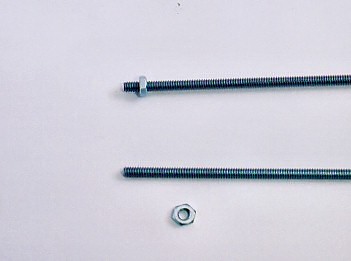

| Thread (2) 1/4" hex jam nuts
onto ends of (2) Tie Rods about 1/2". Do not use any of the (2)
flanged nuts for this step.
1/4" Tie Rod 1/4" hex jam nut |
 |

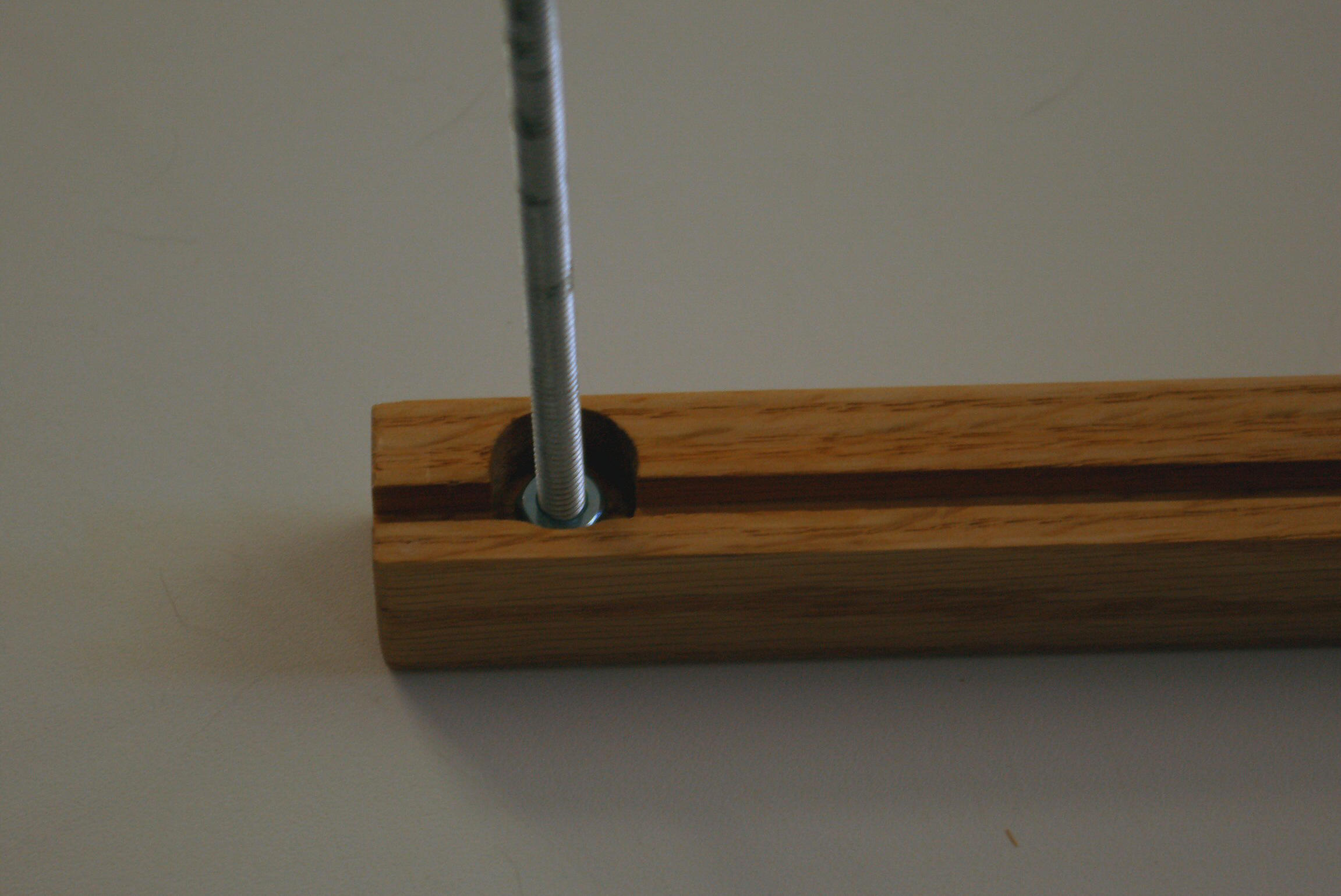

| Thread ends of (2) Tie Rods
with Nuts into threaded metal bushings in Front Rail as shown.
The end of Tie Rod should be flush with the top surface of the metal bushing This view is from the rear of the Front Rail
|
 |

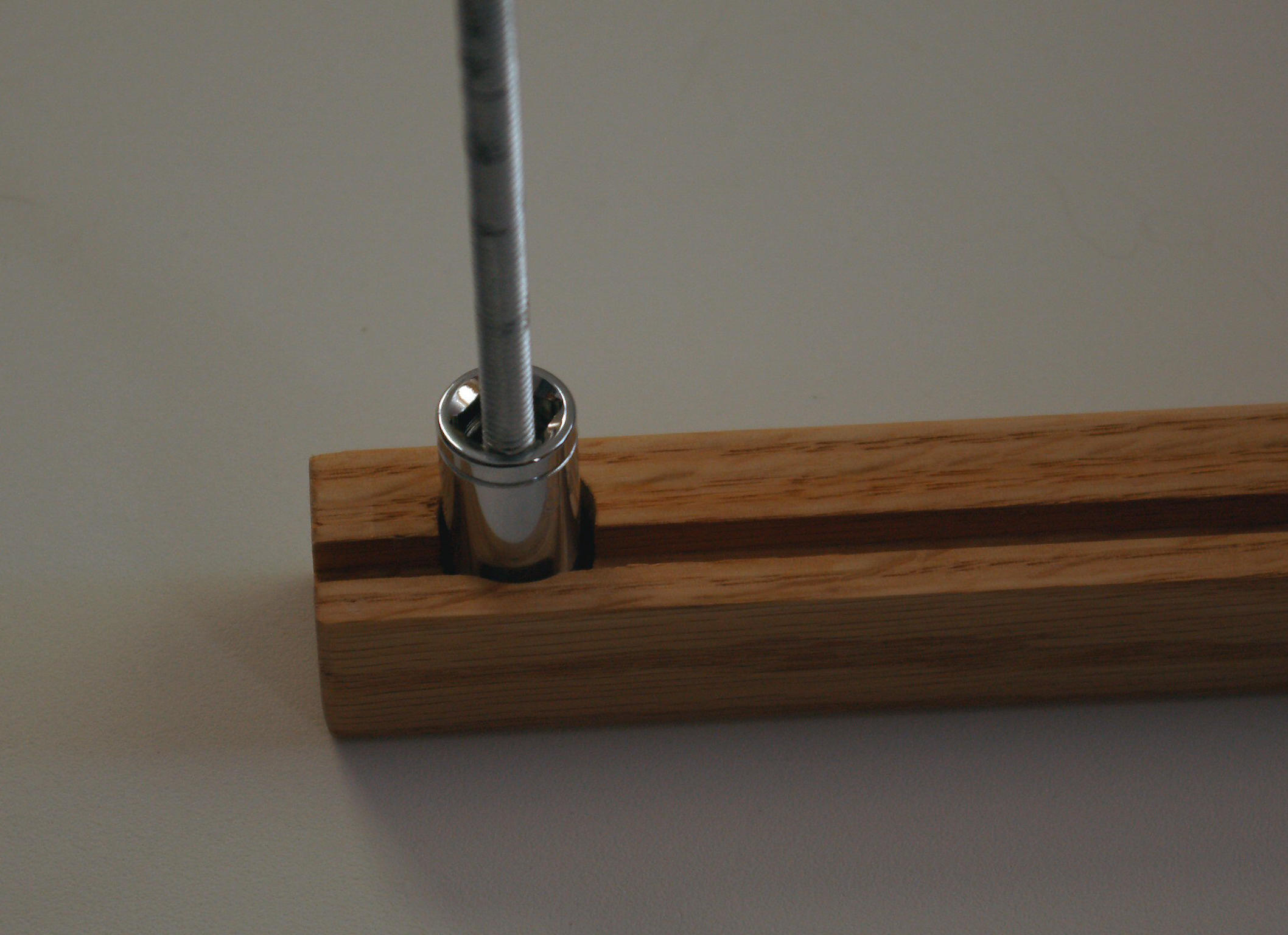

| Slide 7/16" socket over Tie
Rod
|
 |
|

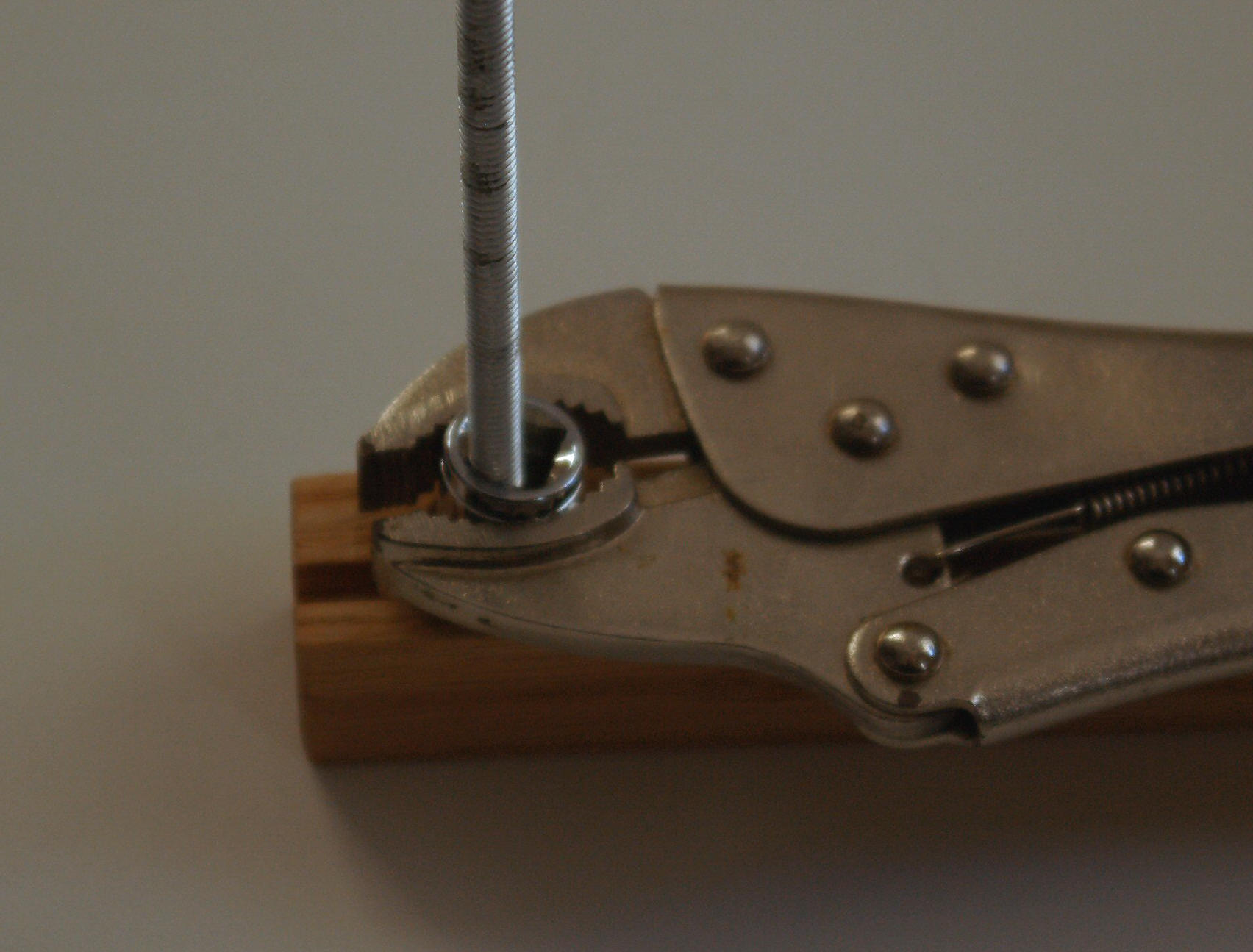

Turn socket with pliers to tighten nut & anchor Tie Rods into the Front Rail
|
 |

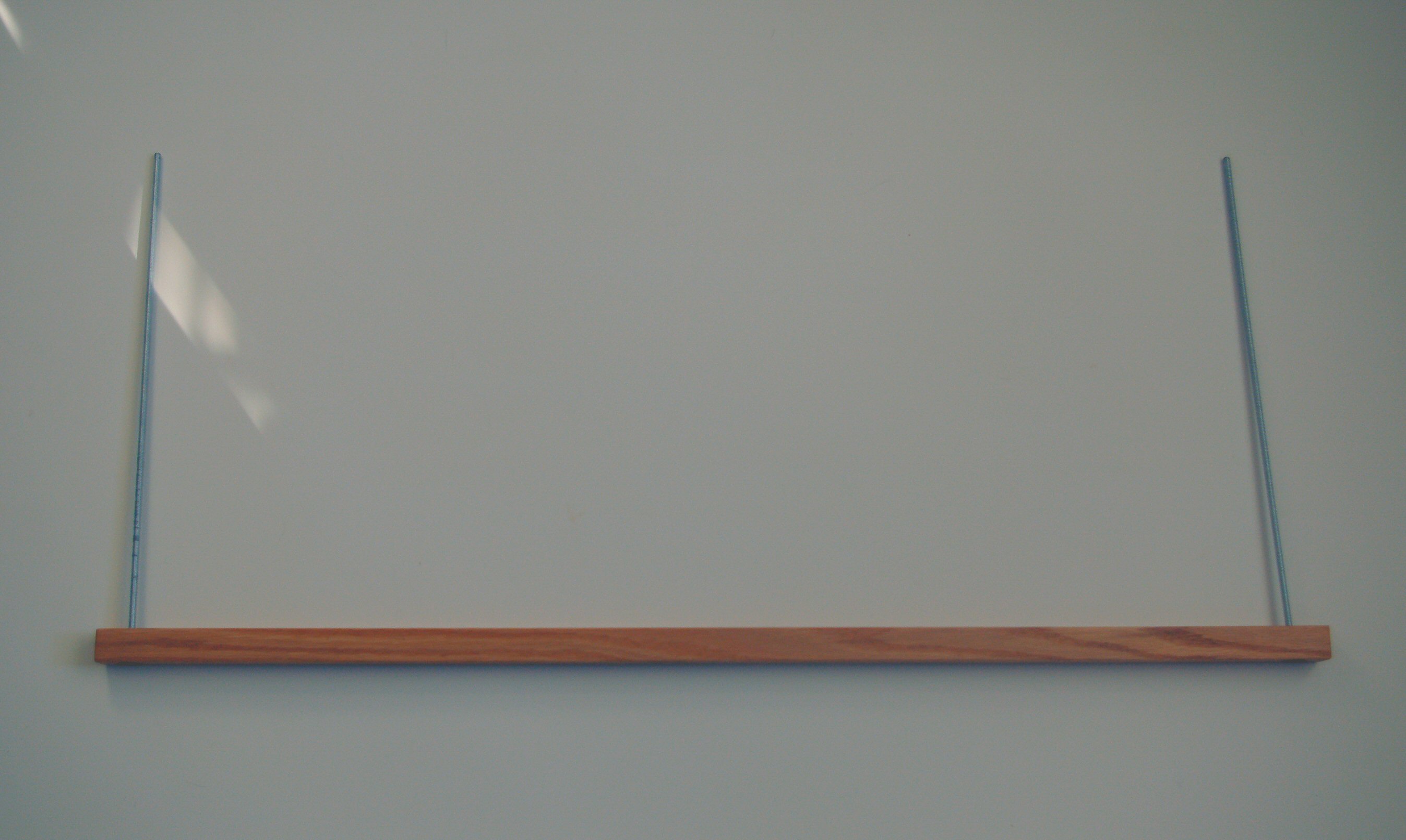

| View of Front Rail with both Tie Rods installed |  |

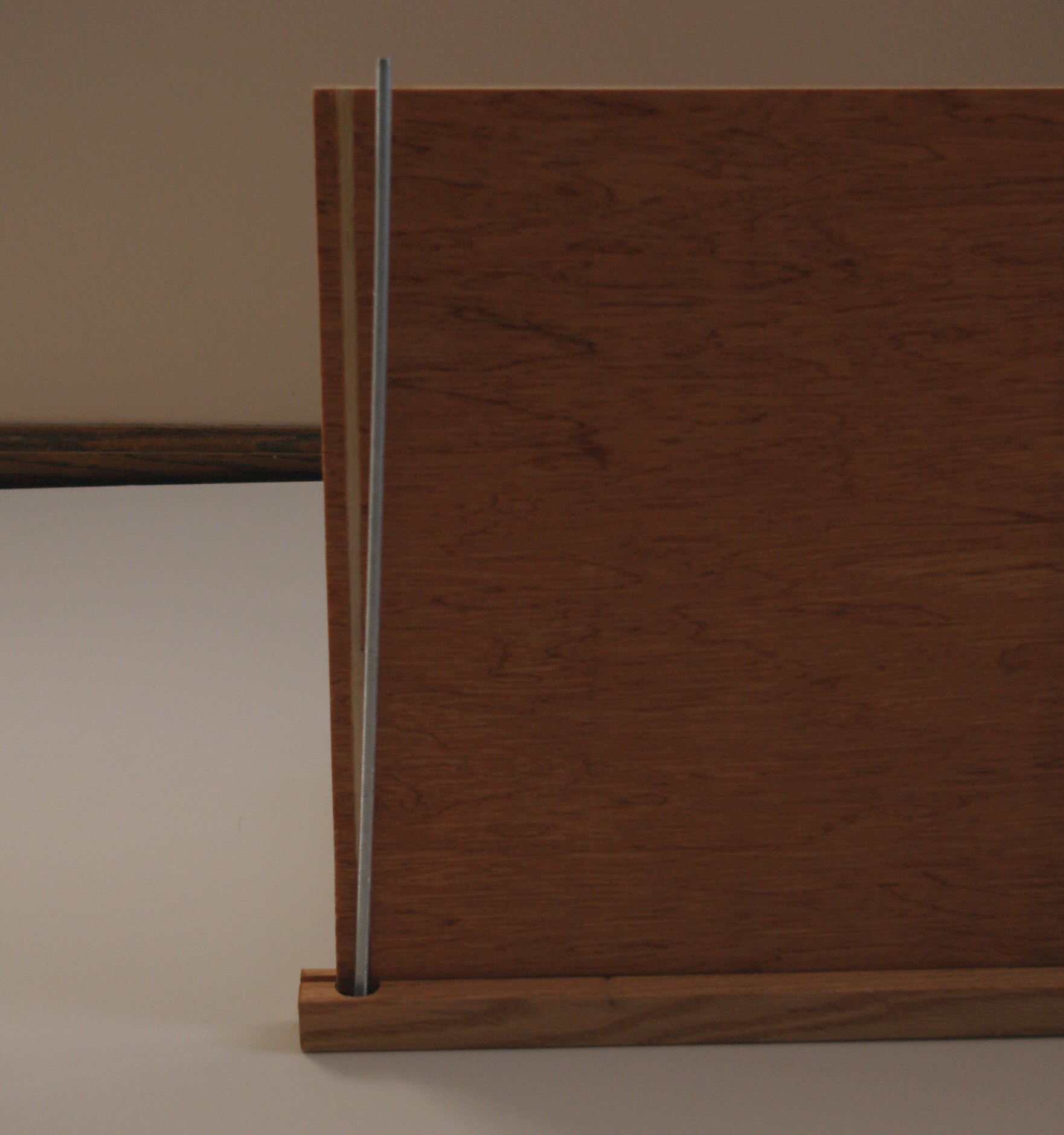

| Stand Front Rail / Tie
Rod assembly up.
Drop Tray Bottom into slot in Tray Front Note: groove in plywood provides clearance for Tie Rod
|
 |

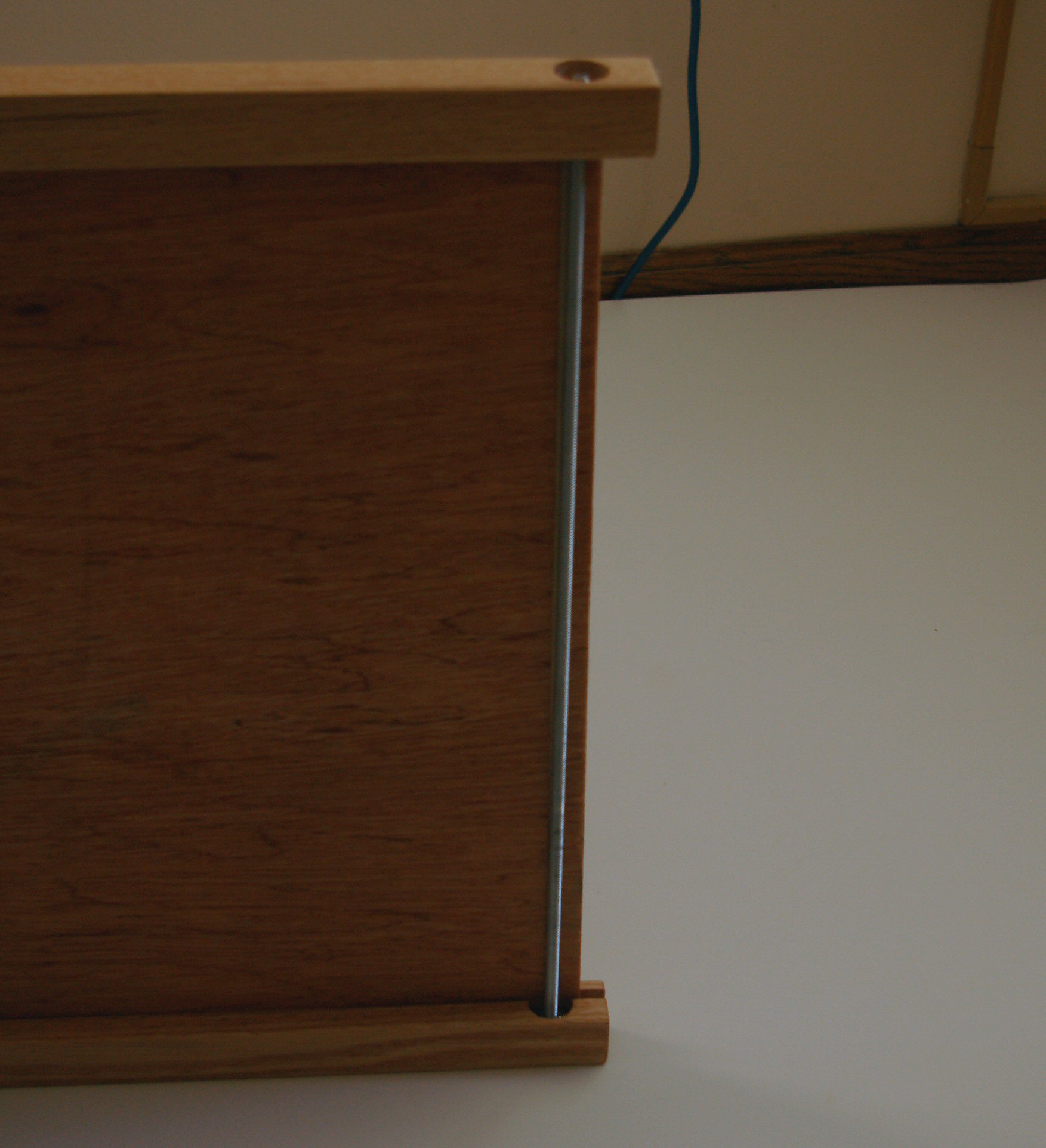

| Drop Rear Rail into place as shown |  |
| Thread (2) flanged nuts onto (2) Tie Rods a few turns. |  |

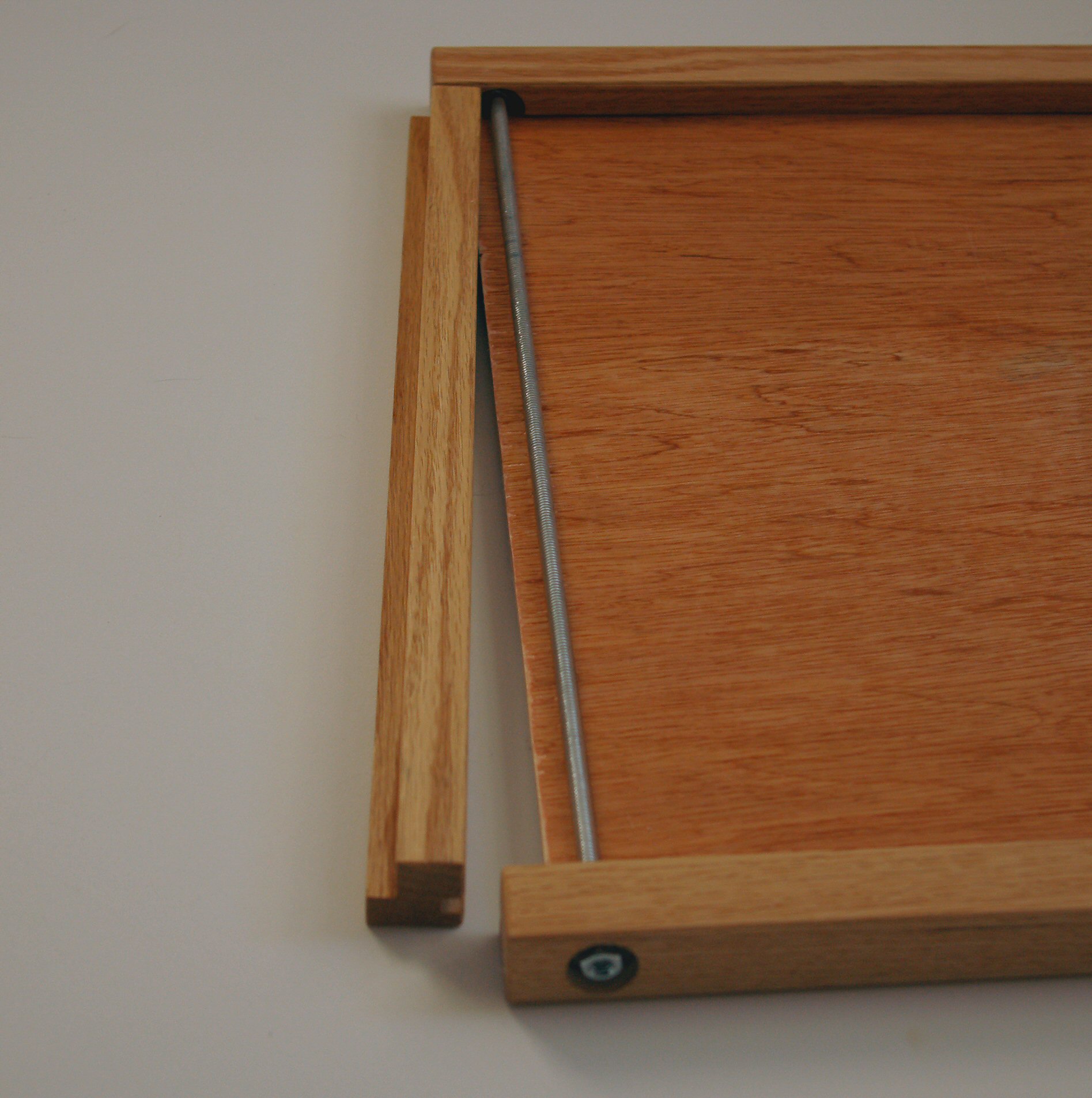

| Slide Tray Slides between
Front and Rear Rail. Note how "L" shaped Tray Slides are oriented. |
 |

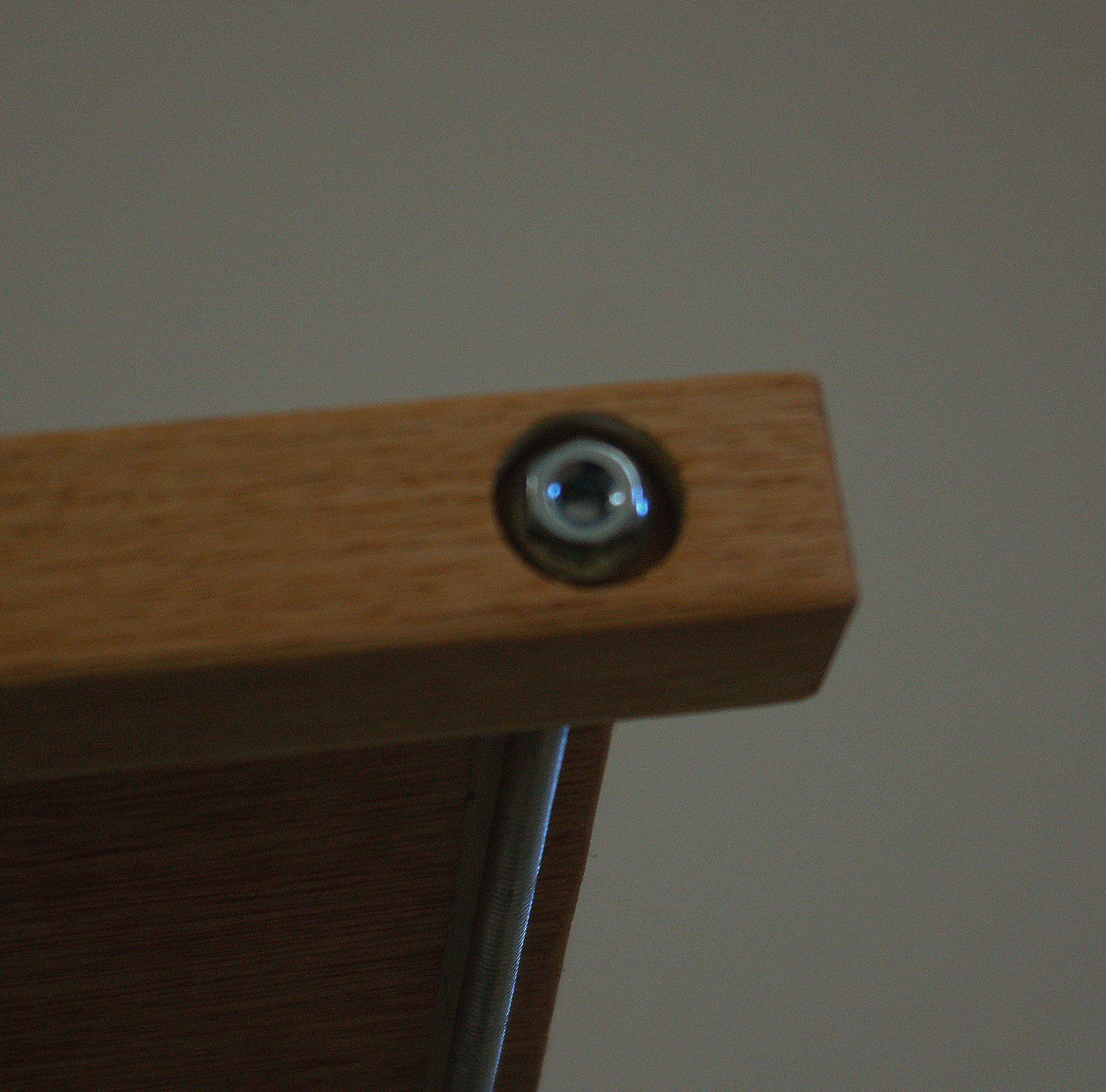

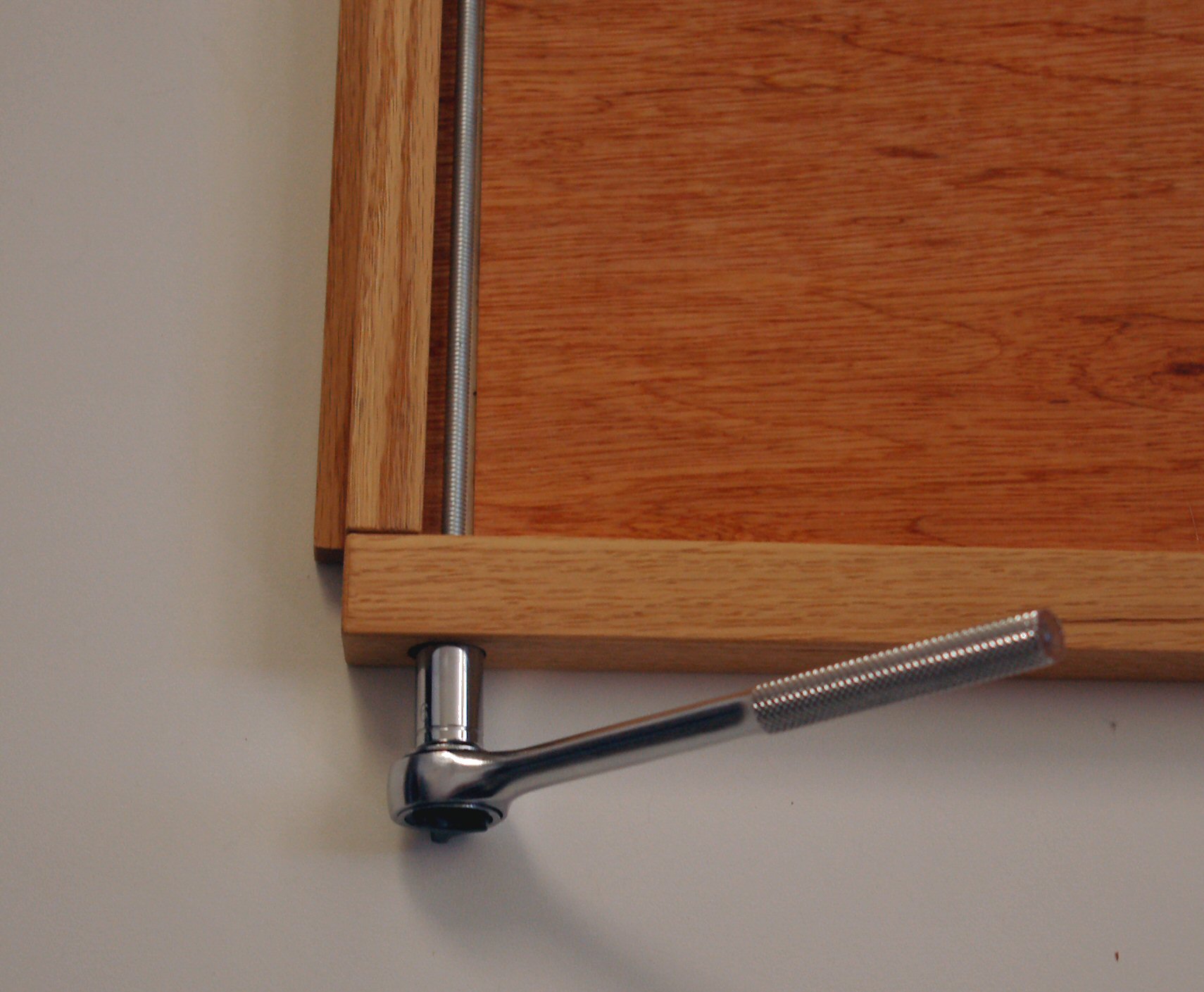

| Tighten flanged nuts |
 |

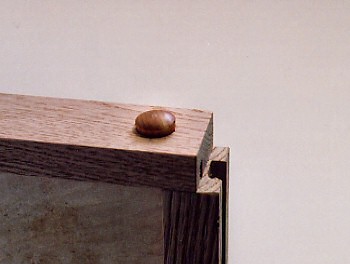

| Install wood plugs into holes
in front rail
Install Desk Slides onto Legs of desk, underneath Monitor Shelf. Slide Tray in. |
 |
