JS Series Illustrated Standard Equipment
 |

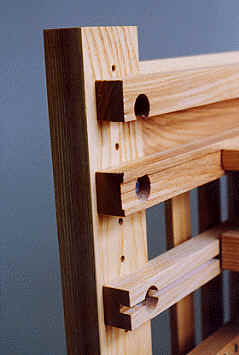

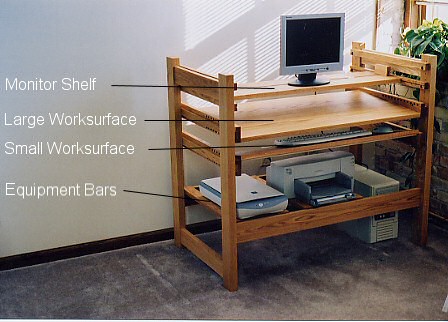

Work & Equipment Surfaces 4 work and equipment surfaces are standard. All surfaces are height adjustable in 5/8" increments.
|
|
 |
 |
Pull out Worksurfaces Both Worksurfaces pull in and out. Either can be pulled completely out. While in use, Worksurface can be extended about 18". With this extention, and clearance under the Front Rail, leg room is nearly unlimited. |
 |
 |
Multi-Angle Tilt Left: Work surfaces can be tilted 50 degrees positive or negative or used flat. Adjust-ment takes 15 seconds with no tools. |
| tilt angle adjustment_0001.WMV | ||
 |
 |
Stop Rods Stop Rods keep items placed on tilted Worksurfaces from sliding off. 2 Stop Rods are supplied per desk.
|
 |
 |
Hidden Hardware Photo at top left shows screw pocket in Rail. Pocket is turned to inside of desk hiding screw. Photo at right shows counterbores in slides, which hide heads of screws
Joinery Photo at bottom left shows mortise & tenon joinery of optional Mission End Frame
|
 |
||
