Hutch Shelf
Assembly
|
 |
Install Hutch Shelves after Monitor Shelf has
been installed and adjusted for height.

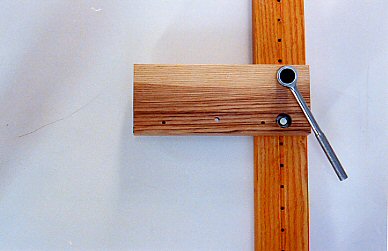

Hutch Shelf Supports are handed. The Support in this photo is left handed. Install lower Hutch Shelf Supports using (4) 1/4" X 1 1/2" screws with no washer. Make sure lower edge of slot in Support is above the top of your computer's monitor. Wax screws prior to insertion. |
 |

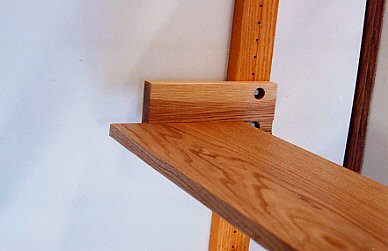

Slide Hutch Shelf Board into slots in Hutch
Shelf Supports. Make sure Hutch Boards clears the top of your monitor.
|
 |

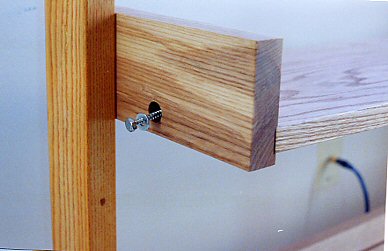

Attach Hutch Shelf Board to Hutch Shelf Supports using (2) 1/4" X 2" screws with (1) washer under the heads of the screws. |
 |

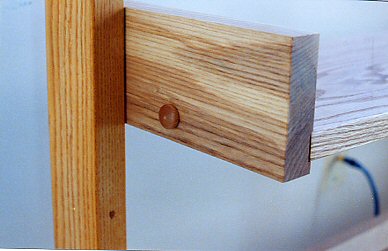

Push in Wood Plugs to cover screw heads Install upper Hutch Shelf.
|
