Inside Mount of CPU Carrier

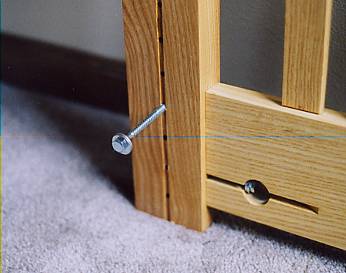

| Insert (2) 1/4" X 3" screws with 2 washers
each under the heads into Leg holes on left or right End Frame Assembly.
Wax screws prior to insertion
|
 |

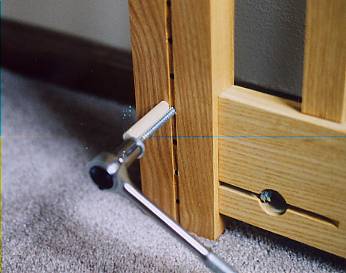

| Using Gauge Pin marked "Rail to Leg" set height of screws. |  |

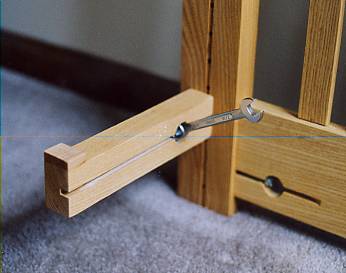

| Slide (2) CPU Carrier Stub Rails onto screws. Make sure washers are under the heads of the screws, and not between the wood parts. Tighten screws. |
 |

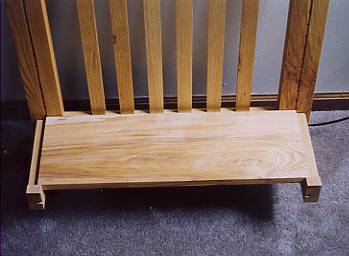

| Drop CPU Carrier Boards onto Stub Rails. You may get (1) 8" wide board as shown, or (2) 4" wide boards.
|
 |
