Attach Stationary Slides to Legs of End Frame Assemblies

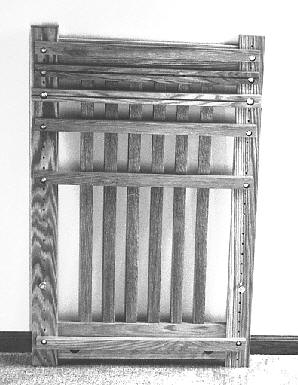

Position Stationary Slides, Monitor Shelf Supports, and Tray Slides over Legs of End Frame Assemblies as shown. The Slides & Supports Slides have 2 counterboared holes. As these holes are offset, position all Slides and Supports the same way, either with offset holes up or offset holes down.

Measure from the bottom, or count the number of holes. Attach Stationary Slides, Monitor Shelf Supports and Tray Slides to Legs of End Frame Assemblies with 1 1/2" screws and washers. Use a 7/16" socket wrench. Make sure you wax the screws prior to insertion.

Note #1: Washers for Stationary Slides, Monitor Shelf Supports and Tray Slides are 5/8" in diameter.

Note #2: Positions shown for the Stationary Slides, Monitor Shelf Supports and Tray Slides are for preliminary sizing only. Once you have assembled the desk, you will probably move the Stationary Slides, Monitor Shelf Supports and Tray Slides to adjust for the height of the user.

Note #3: Mission Style End Frame shown, Modern Style assembles the same way.

Install (2) 1/4" X 3" Screws with 2 washers each at hole #9 or 12 1/2". Use Gauge Pin to set height.
