Block & Slat Assembly for
Mission Style End Frames (optional)

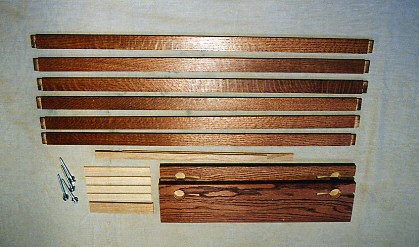

| Locate and identify Block &
Slat Parts: (4) End Blocks: 7/8 X 4 5/8 X 20 (12) Slats: 3/8 X 1 5/16 X 30 1/2 (2) Mission Frame Slat Gauge Note: Parts for 1 End Frame shown in photograph, 2 End Frames required per desk
|
 |

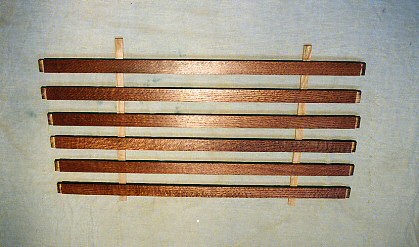

| Position 6 Slats on top of the
2 Slat Gauges as shown
|
 |

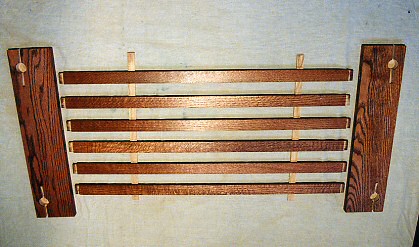

| Position End-Blocks. Make sure
pockets in End-Blocks face up
|
 |

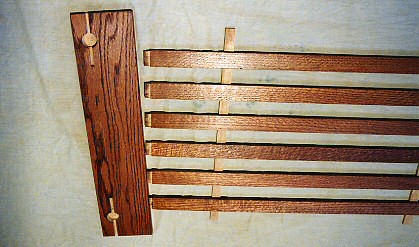

| Insert ends of 6 Slats into
one of the End Blocks.
Repeat with other End Block |
 |

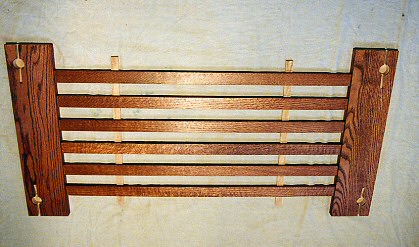

| Assembled Block & Slat Assembly should look
like this.
|
 |
