Monitor Shelf Assembly'Nomic Station |
 |
Locate and identify Monitor

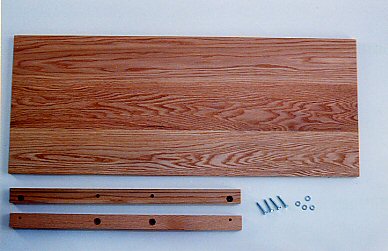

Shelf Parts: (1) Monitor Shelf Board 7/8" X 16" X L (2) Monitor Shelf Supports: 1 1/8" X 1 5/8" X 25 1/2" (4) screws: 1/4" X 1 1/2" (4) screws: 1/4" X 2" (8) washers: 1/4" flat (5/8" diameter) |
 |

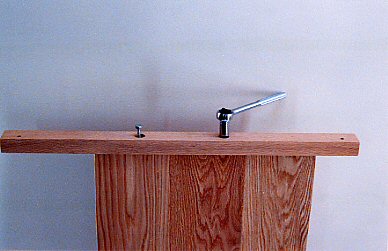

Stand Board up against a wall. Position Supports onto 16" end of Board. Board should set into the slot in the Supports. Line up holes. Make sure Supports project an equal amount on both ends of the Board. If not, turn support around. Install 1/4 X 2" screws, with washers under their heads, into holes. Wax screws prior to insertion. Tighten Screws
|
 |
Slide Monitor Shelf Assembly
into the Desk, and let it rest on either the Storage Trade Slides, or
Stationary Slide for the Large Work Surface.

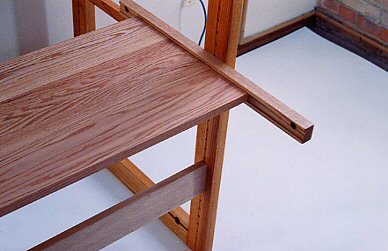

Assembly can be reversed from that shown to allow Computer Monitor to be positioned closer to the user.
|
 |

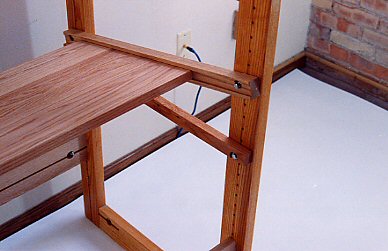

Lift up 1 corner of the Monitor Shelf Assembly, and attach it to the leg as shown. Use a 1/4" X 1 1/2" Screw, with (1) washer under its head. Wax Screw prior to insertion. Make sure the screw is 1 1/2" long. Do not use the 2" long screws intended to assemble the Shelf Supports to the Shelf Board. Repeat for remaining 3 corners.
|
